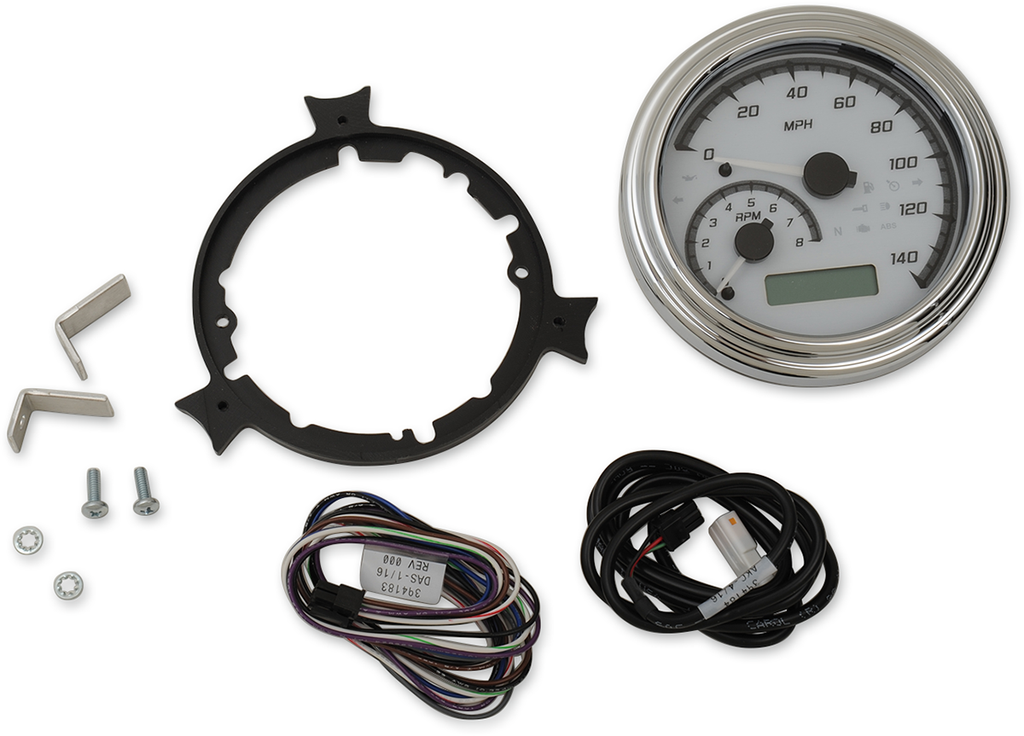

Dakota Digital MVX Series Fatbob Analog/Digital Gauge System - White, Gray, Chrome (Part Number MVX-2004-WG-C)
Regular price $595.00 USD
MVX Series Fatbob Analog/Digital Gauge System - White/Gray/Chrome The Dakota Digital MVX Series Fatbob Gauge System offers a comprehensive instrumentation solution for...
Lease for as low as $/week
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
Category:
MVX Series Fatbob Analog/Digital Gauge System - White/Gray/Chrome
The Dakota Digital MVX Series Fatbob Gauge System offers a comprehensive instrumentation solution for motorcycles, combining analog and digital displays in a stylish design. This system features a 140 mph speedometer, tachometer, odometer, dual resettable trip meters, and full indicator lights including turn signals, high beam, neutral, and low oil pressure alerts, all integrated into one sleek gauge. Designed for '99-'03 models with customizable display options, the system provides seven user-selectable colors for pointers, backlights, and the LCD message center, including red, green, blue, teal, magenta, amber, and white. For newer models from 2011 to 2022, it expands to 31 color choices, enhancing visibility and personalization. The 8,000 rpm tachometer offers an adjustable shift point and digital numeric readout, aiding riders in maintaining optimal engine performance. Additional features include resettable miles to service with a user-settable countdown warning, an hour meter, a 12-hour clock, voltage readout with low-voltage alert, and optional cylinder head temperature sensing if equipped. The system also supports a separate oil pressure sending unit (sold separately) and a seven-speed gear position indicator compatible with 3- to 7-speed transmissions. Safety and convenience are further enhanced with a security system indicator, automatic turn signal canceling, wait-to-start/check engine light functions, and performance calculations such as 0-60 times, top speed, peak RPM, quarter-mile times, and speeds. Installation involves cut/splice wiring, providing a custom fit rather than direct plug-in. The case diameter measures approximately 4-1/4 inches, with a bezel diameter of 4-5/8 inches, making it a robust yet stylish addition to your motorcycle dashboard.
Features:
- 140 mph analog speedometer with full indicator lights
- 8,000 rpm tachometer with adjustable shift point and digital readout
- Multiple color options: 7 for older models, 31 for newer models, customizable for pointer, backlight, and LCD
- Dual resettable trip meters with user-settable service countdown
- Hour meter and 12-hour clock for precise monitoring
- Voltage readout with low-voltage alert for battery health
- Cylinder head temperature sensor support (if equipped)
- Oil pressure sending unit compatibility (sold separately)
- Seven-speed gear position indicator compatible with 3-7 speed transmissions
- Security system indicator and automatic turn signal canceling
- Performance calculation functions including 0-60 mph, top speed, quarter-mile times, and peak RPM
- Installation involves cut/splice wiring for a custom fit
- Robust case and bezel dimensions suitable for motorcycle dashboards
