FEULING OIL PUMP CORP. Vented Dipstick - Polished - Touring Vented Dipstick

Product type: Fuel Management

SKU : 0710-0259

Regular price $299.95 USD

Lease to own Pay as low as $/week

Features Screws into the factory oil fill spout as a stock replacement part on M-Eight baggers This breathing dipstick removes unwanted build-up...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Category:

Details

Features

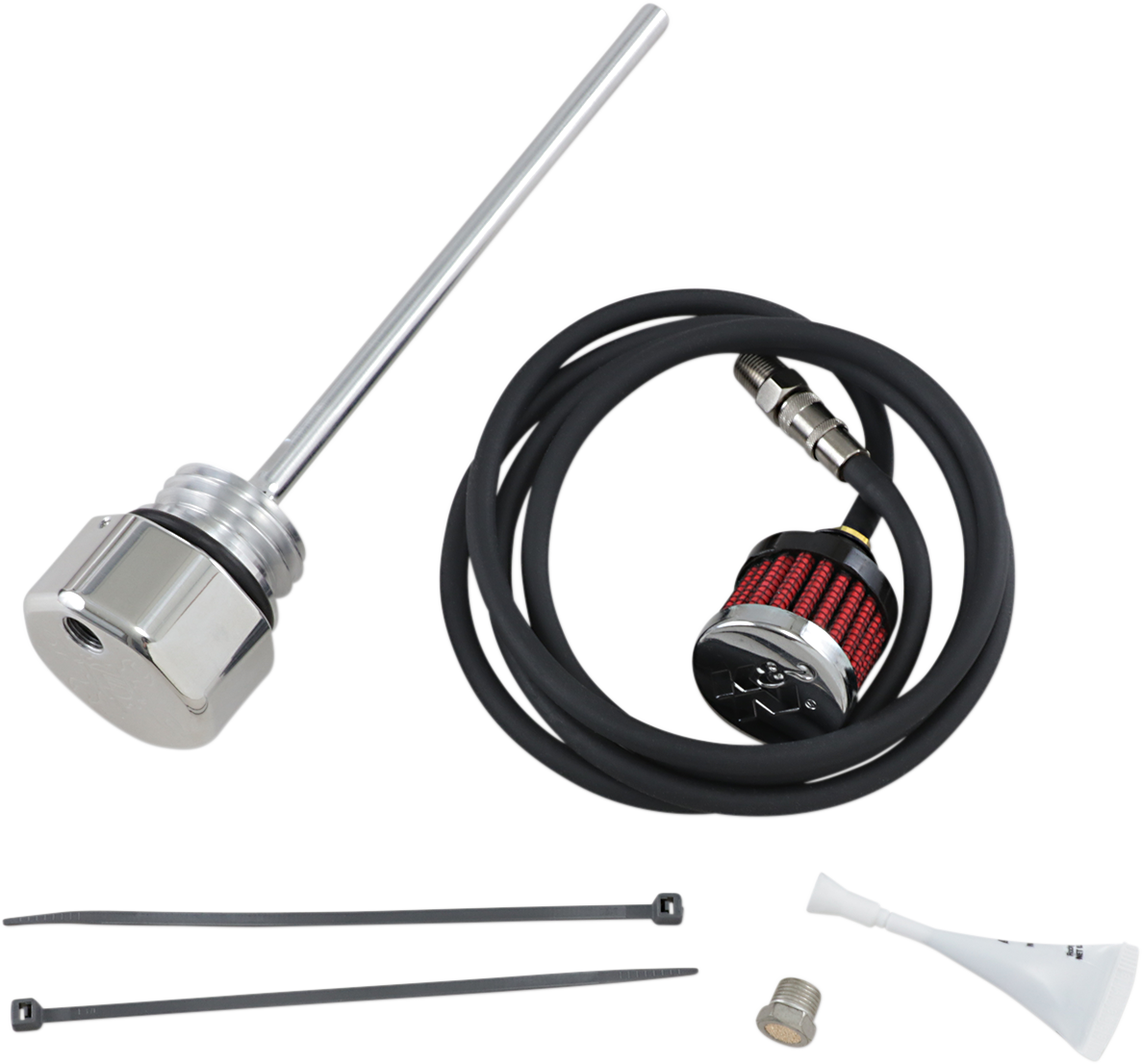

Screws into the factory oil fill spout as a stock replacement part on M-Eight baggers
This breathing dipstick removes unwanted build-up of blow by, which is found in engines with excessive leakdown through the rings/cylinders which is a common issue with large displacement big bore engines
Test results show a decrease in engine sump oil levels
Dipstick vents excessive pressure from the oil tank through a breather system consisting of a filter element and umbrella valve
Choose from two venting style options when installing the dipstick
Option 1 is to use the 1/8 NPT breather vent fitting with internal porous filter element (this option gives a clean look; however it can produce an oil misting/residue out of the element on engines with excessive leakdown/blow by)
Option 2, is to use quick-disconnect coupler fitting with rubber hose and filter element (this option will run any excessive oil misting/residue through the line and into the filter element, but does requires disconnecting the fitting in order to check the oil)
For option 2, we recommend routing the line up the frame rail, up under the seat/abs area then back down along the right side frame rail and the filter element can fit cleanly between the engine/trans matting area on the inside of the lower right frame rail
There are two ways to read the oil level with this dipstick, with the bike on the jiffy stand (FHS) or the bike upright and level (FHU)
If reading the dipstick with the bike on the jiffy stand you will take your reading from the dimples labeled FHS (Full Hot Stand)
When reading the dipstick with the bike upright and level you will take the reading from the dimples labeled FHU (Full Hot Upright)
Made in the U.S.A.
The oil pick-up port is on the right side of the engine. Letting the bike idle or warm up on the kickstand will naturally fill the engine case and skew the oil level in the tank.

Specs

Product Name: Oil Dipstick
Color/Finish: Chrome
Material: Aluminum
Units: Each
Riding Style: Street
Finish: Chrome

2017-2019	Harley-Davidson	Road Glide Special FLTRXS
2017-2019	Harley-Davidson	Road Glide Custom FLTRX
2017-2019	Harley-Davidson	Road King EFI FLHR
2017-2019	Harley-Davidson	Road Glide Ultra FLTRU

Product Name: Oil Dipstick
Color/Finish: Chrome
Material: Aluminum
Units: Each
Riding Style: Street
Finish: Chrome

2017-2020	Harley-Davidson	Road King EFI FLHR
2017-2020	Harley-Davidson	Road Glide Custom FLTRX
2017-2019	Harley-Davidson	Road Glide Ultra FLTRU
2017-2020	Harley-Davidson	Road Glide Special FLTRXS
2017-2019	Harley-Davidson	Electra Glide Ultra Limited Low FLHTKL
2017-2020	Harley-Davidson	CVO Electra Glide Ultra Limited FLHTKSE
2017-2020	Harley-Davidson	Road King Special FLHRXS
2017-2020	Harley-Davidson	Street Glide Special FLHXS
2017-2020	Harley-Davidson	CVO Street Glide FLHXSE
2017-2020	Harley-Davidson	Freewheeler FLRT
2020	Harley-Davidson	CVO Tri Glide
2017-2020	Harley-Davidson	Tri Glide Ultra Classic FLHTCUTG
2017-2019	Harley-Davidson	Electra Glide Ultra Classic EFI FLHTCUI
2019-2020	Harley-Davidson	Electra Glide Standard EFI FLHTI
2017-2020	Harley-Davidson	Electra Glide Ultra Limited FLHTK
2018-2020	Harley-Davidson	CVO Road Glide Custom FLTRXSE
2017-2020	Harley-Davidson	Street Glide EFI FLHX
2017-2020	Harley-Davidson	Electra Glide Police FLHTPI
2020	Harley-Davidson	Road Glide Limited FLTRK
