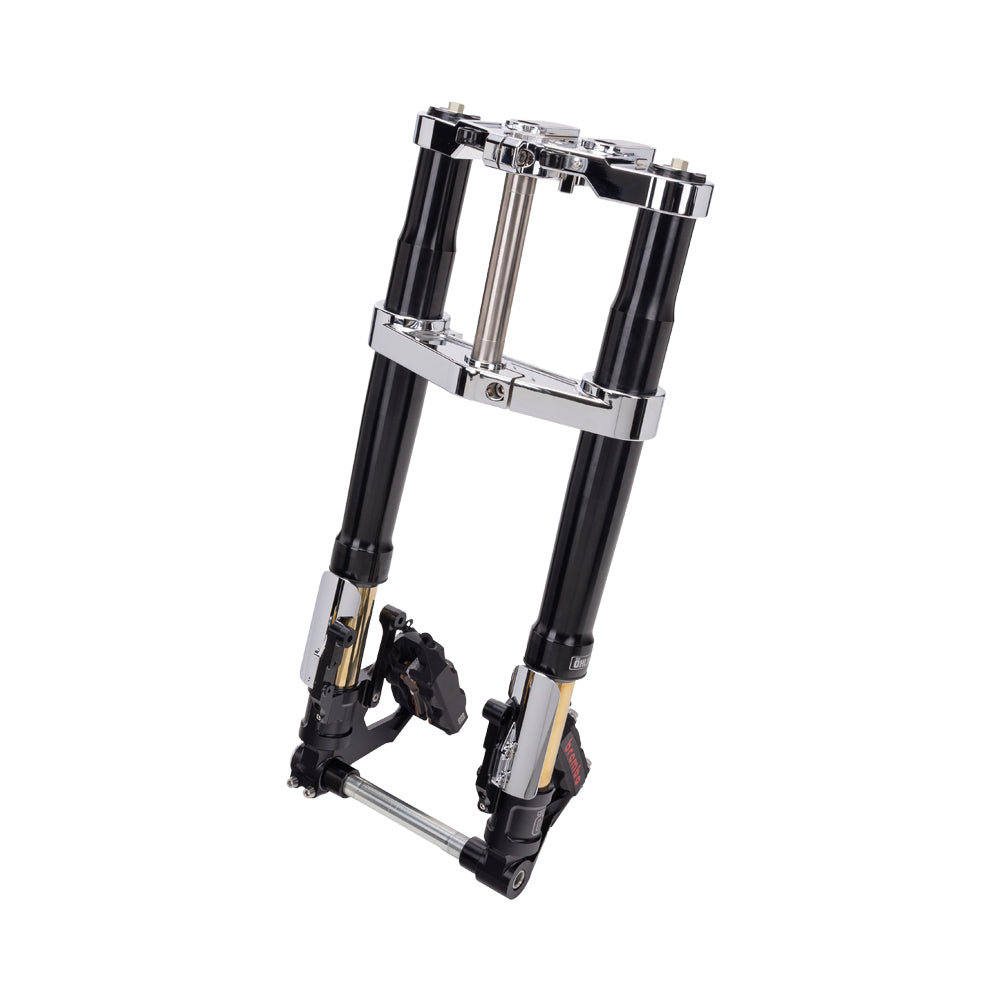

OG 2014-2023 Touring Inverted Front End Complete kit
Regular price $7,079.95 USD
IMPORTANT: This kit requires a 2024-Up Touring model front fender (sold separately). We recommend using our OG Bagger Shorty Carbon Fiber Fender...
Lease for as low as $/week
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
Category:
IMPORTANT: This kit requires a 2024-Up Touring model front fender (sold separately). We recommend using our OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models

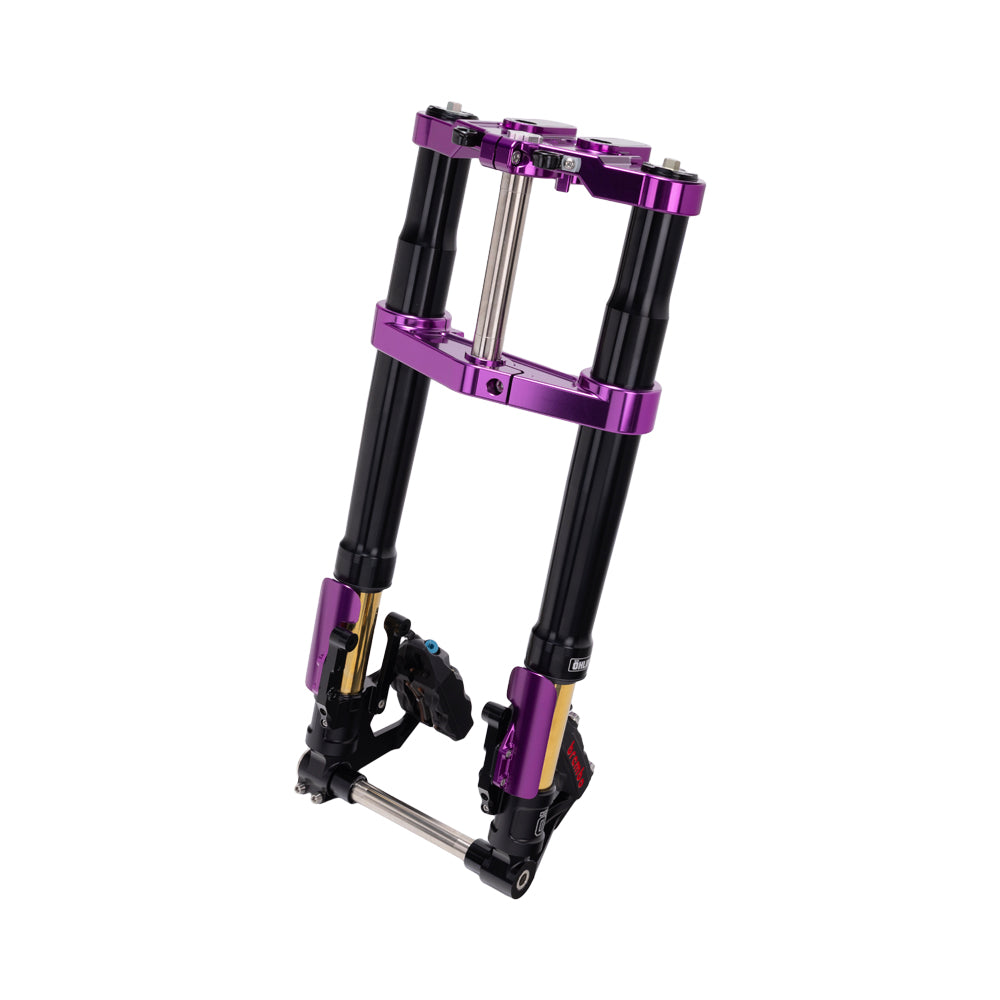

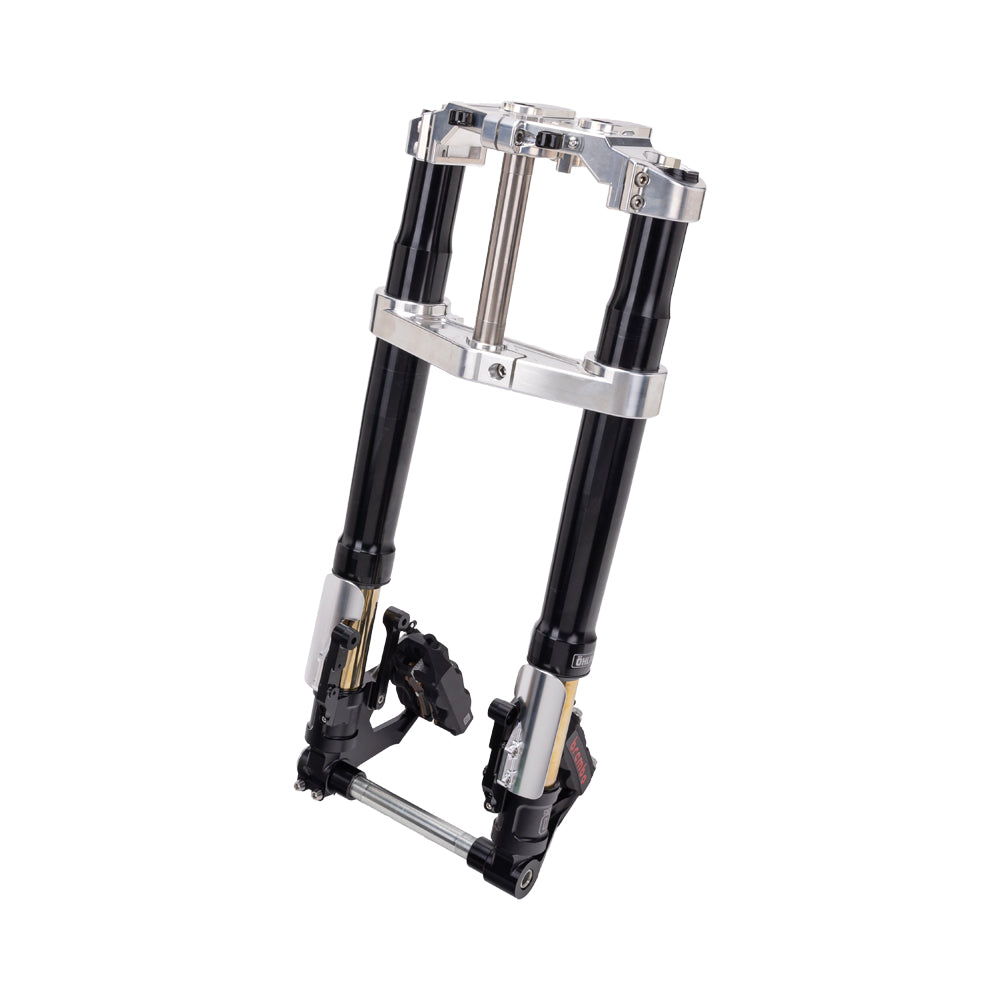

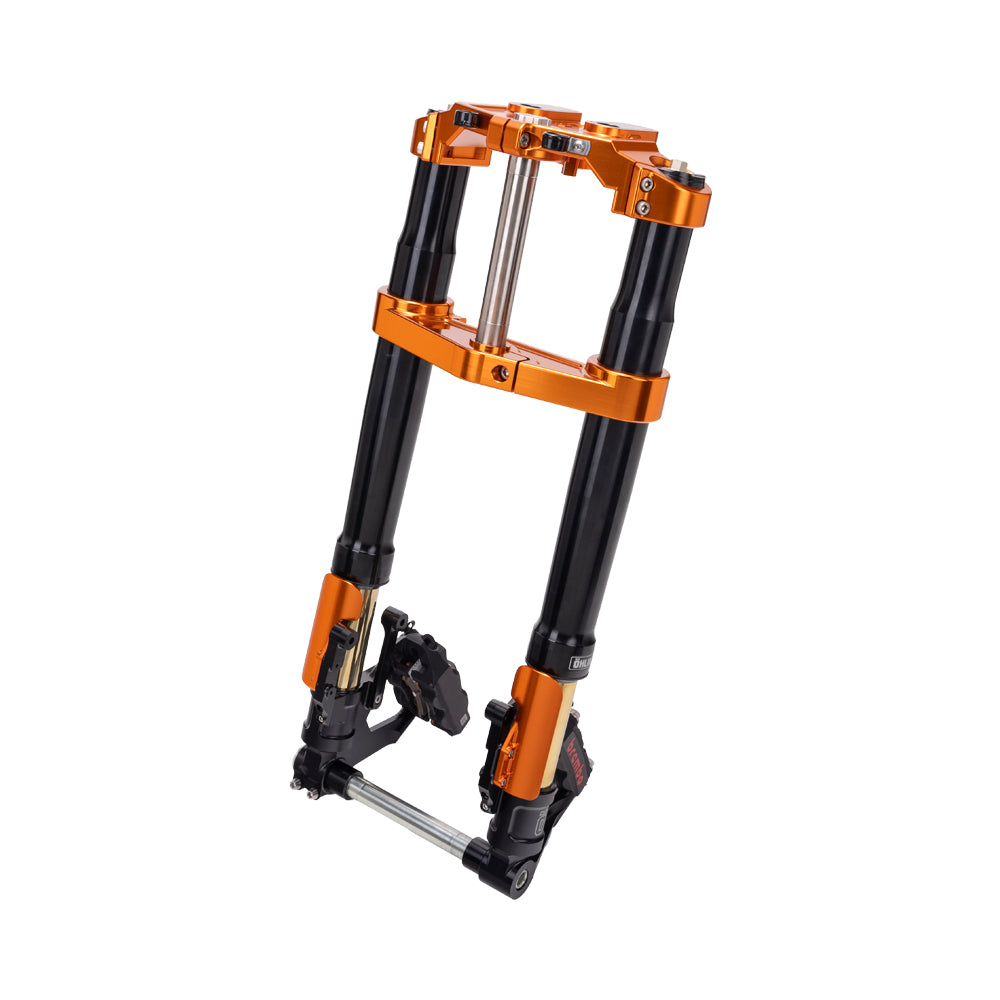

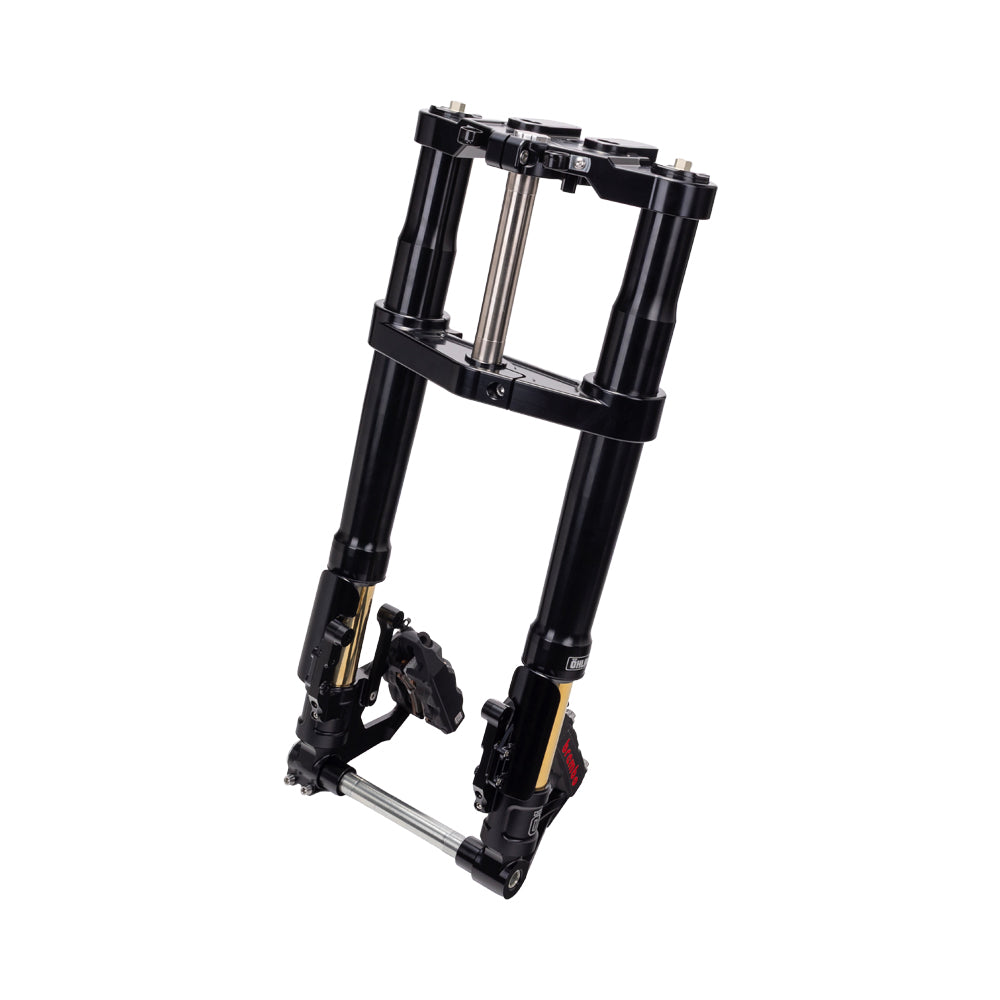

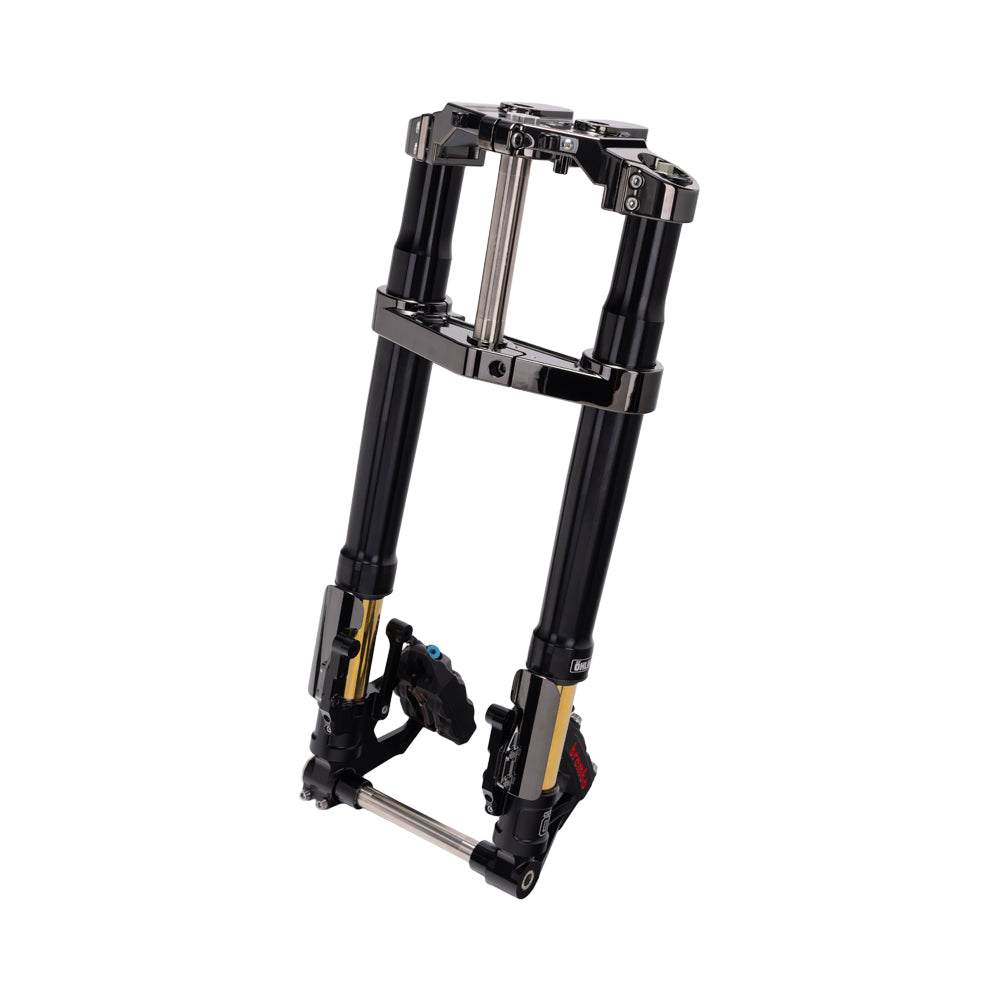

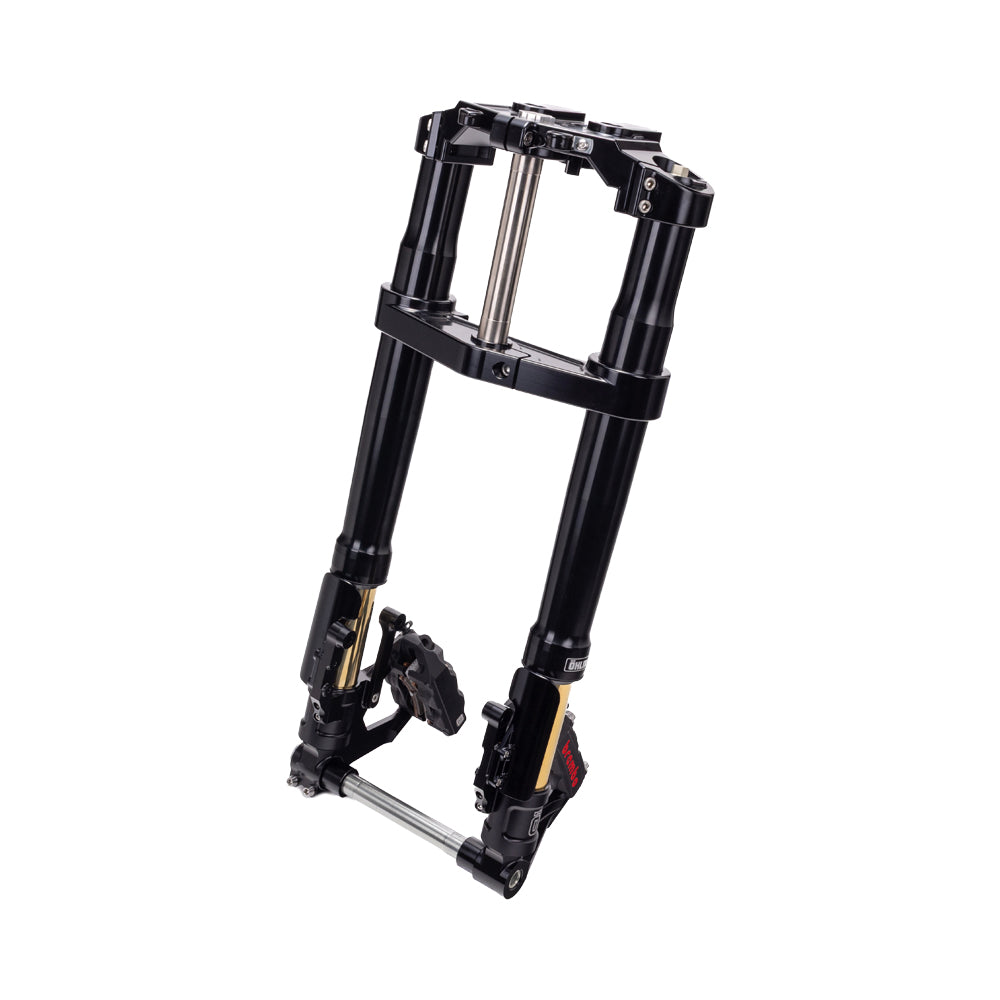

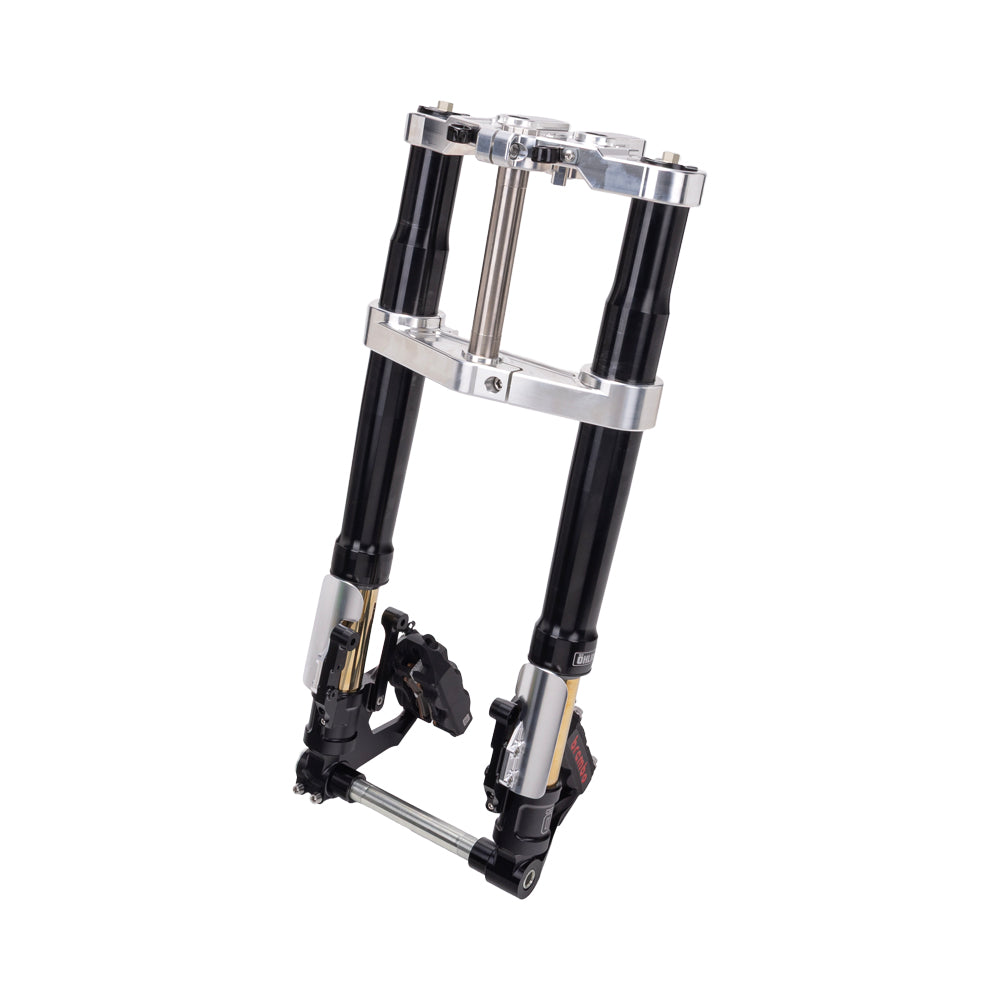

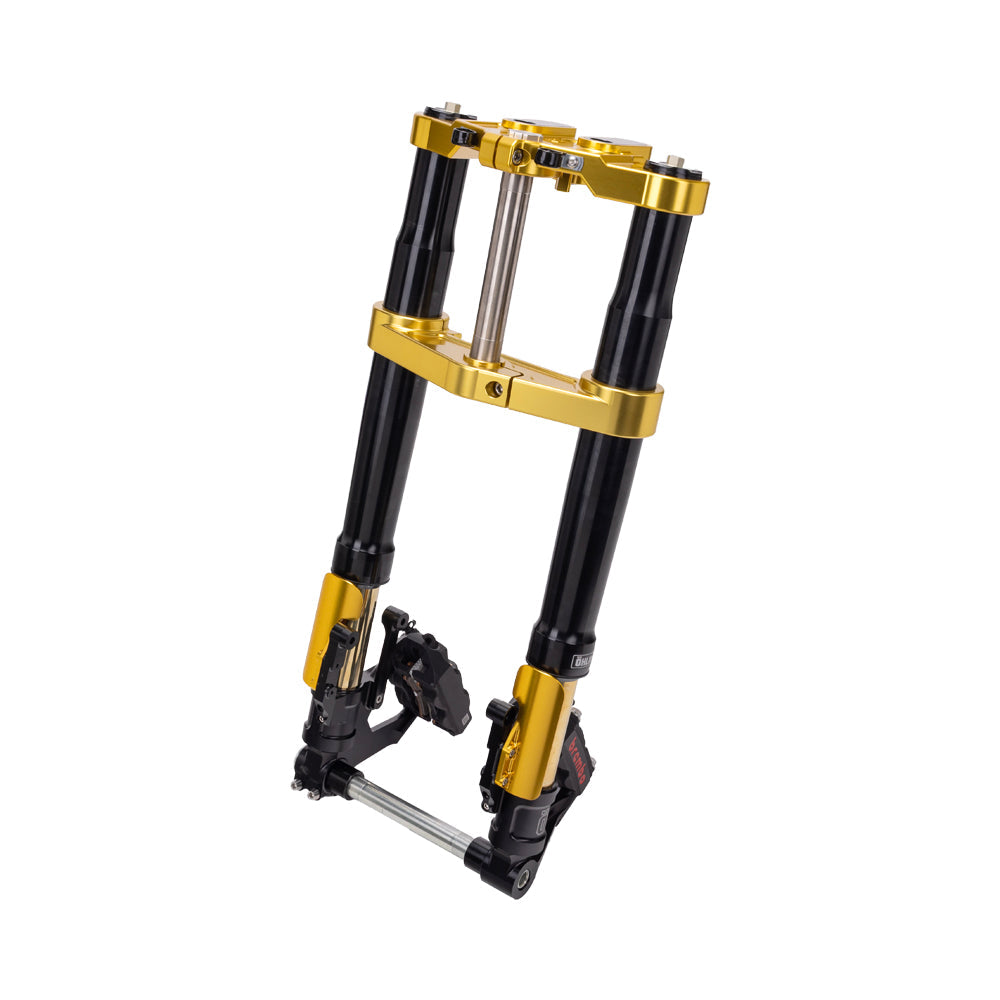

Unleash the full potential of your performance bagger with the OG 2014-2023 Touring Inverted Front End Complete Kit, featuring the Öhlins FGRT 307 Touring Inverted Front Forks. This setup delivers unmatched performance, comfort, and customization possibilities.

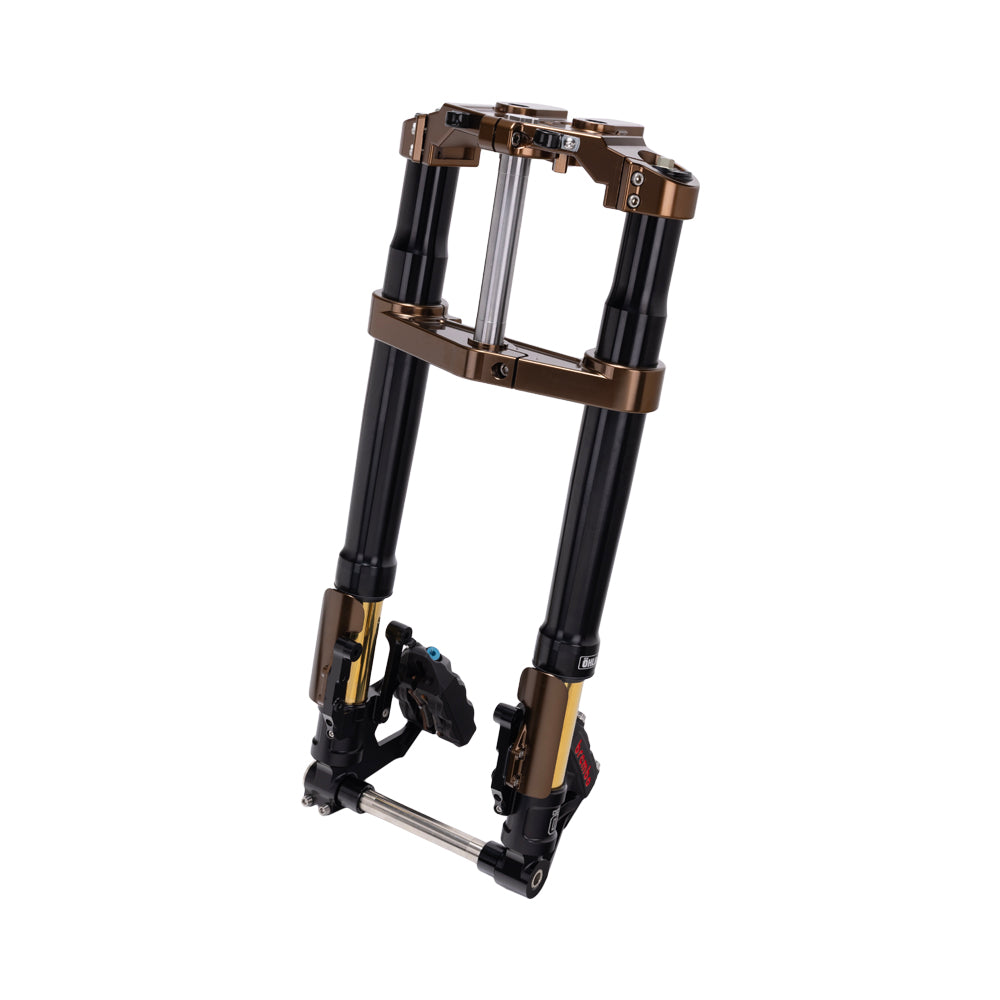

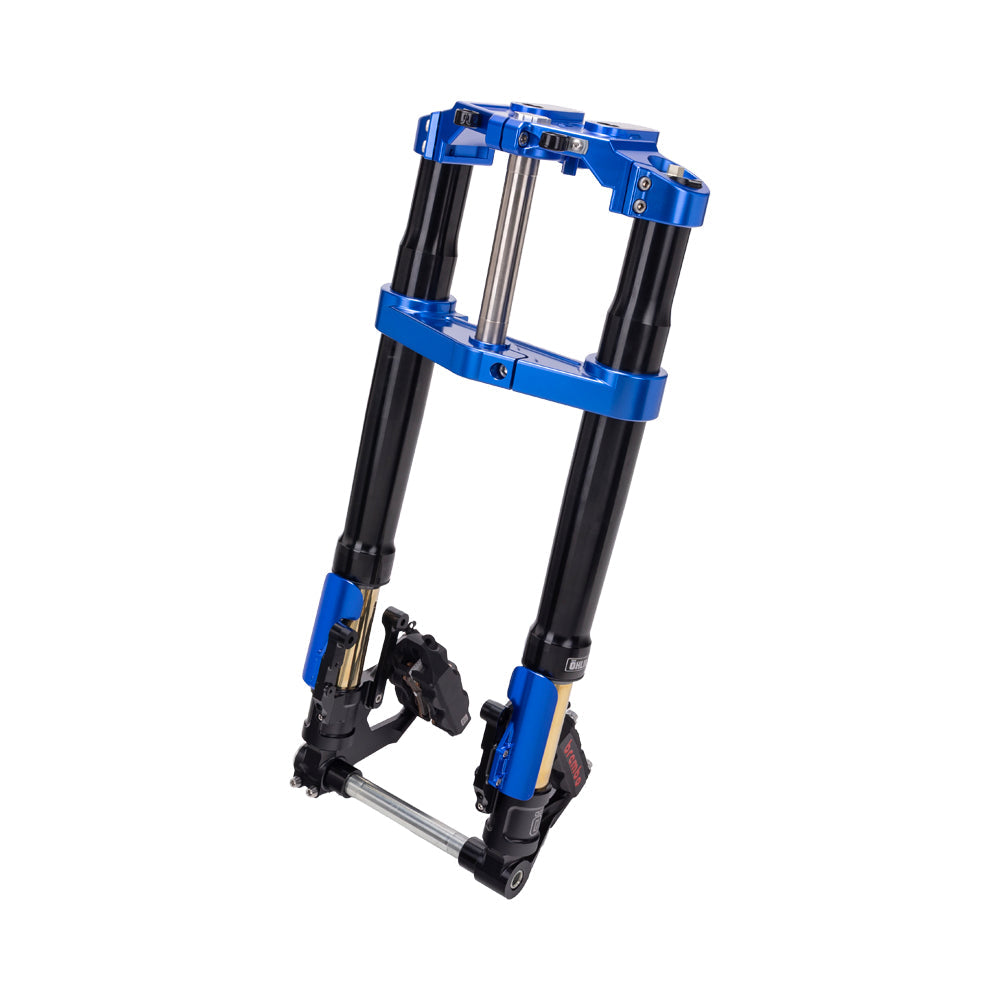

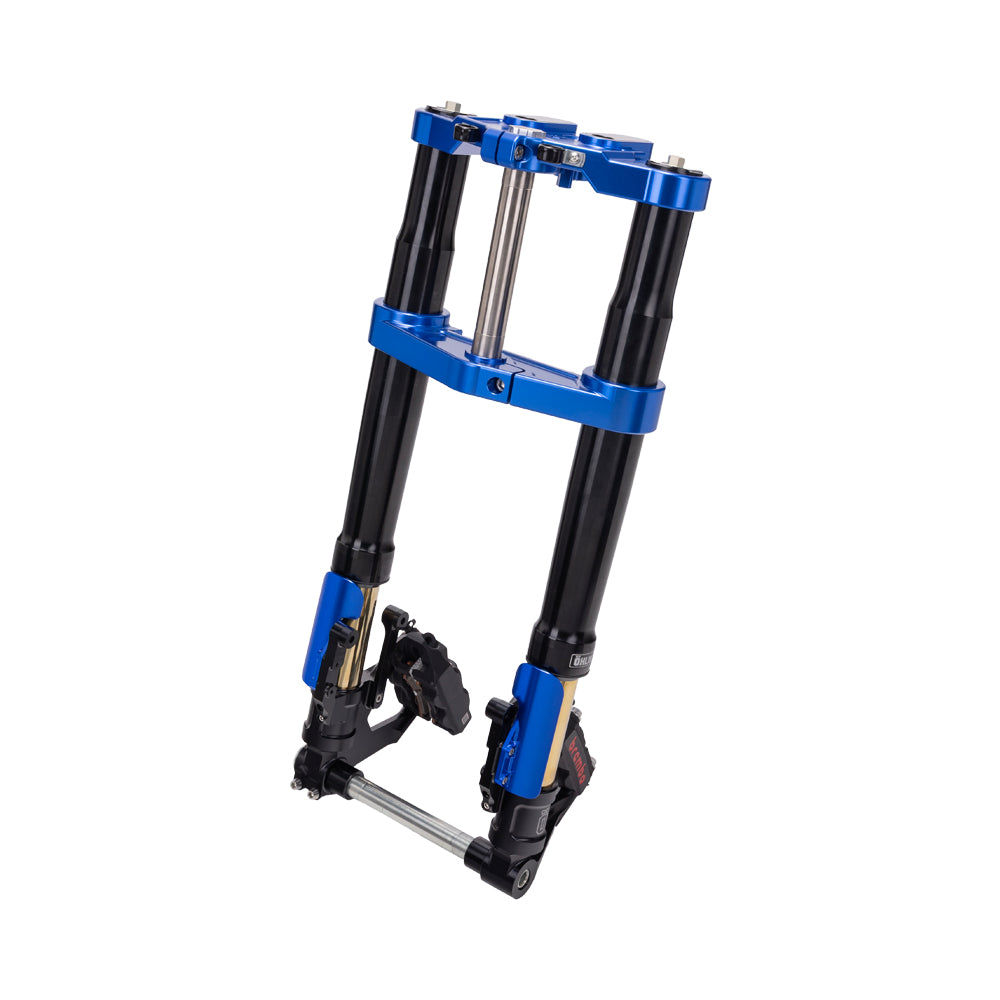

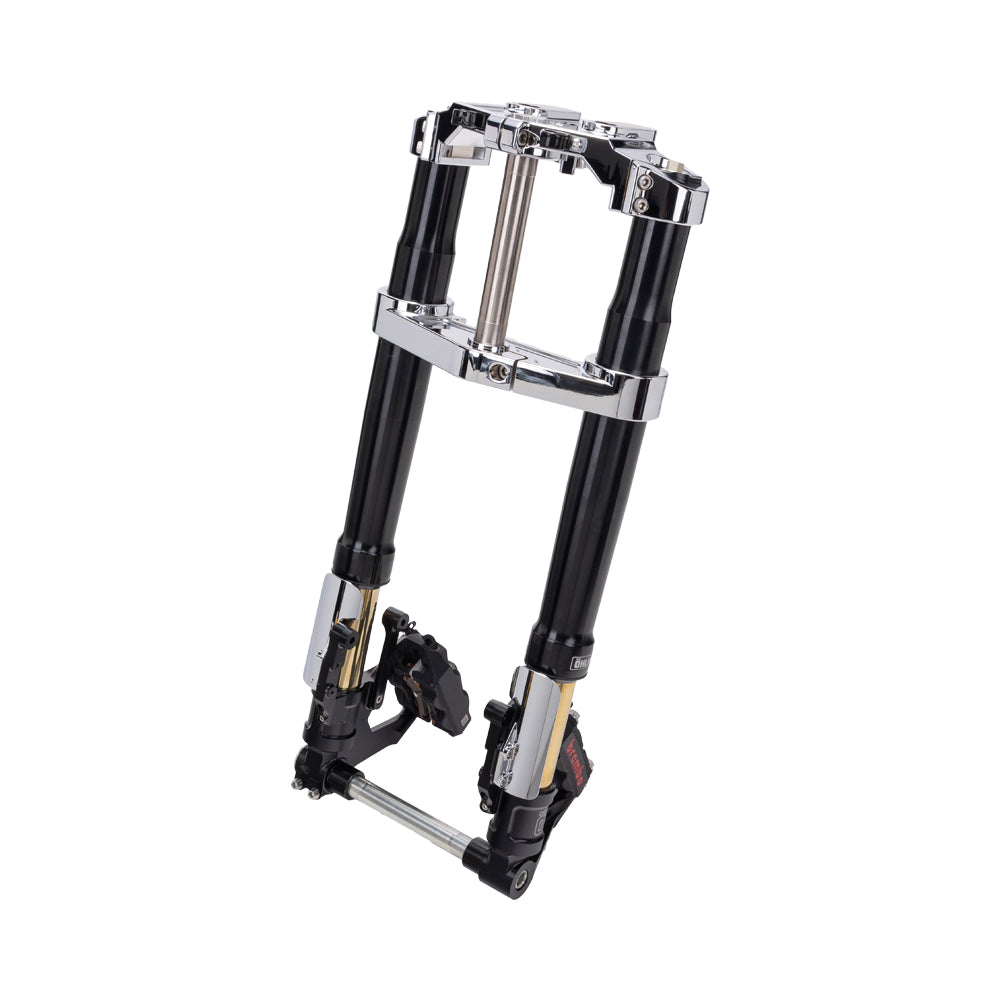

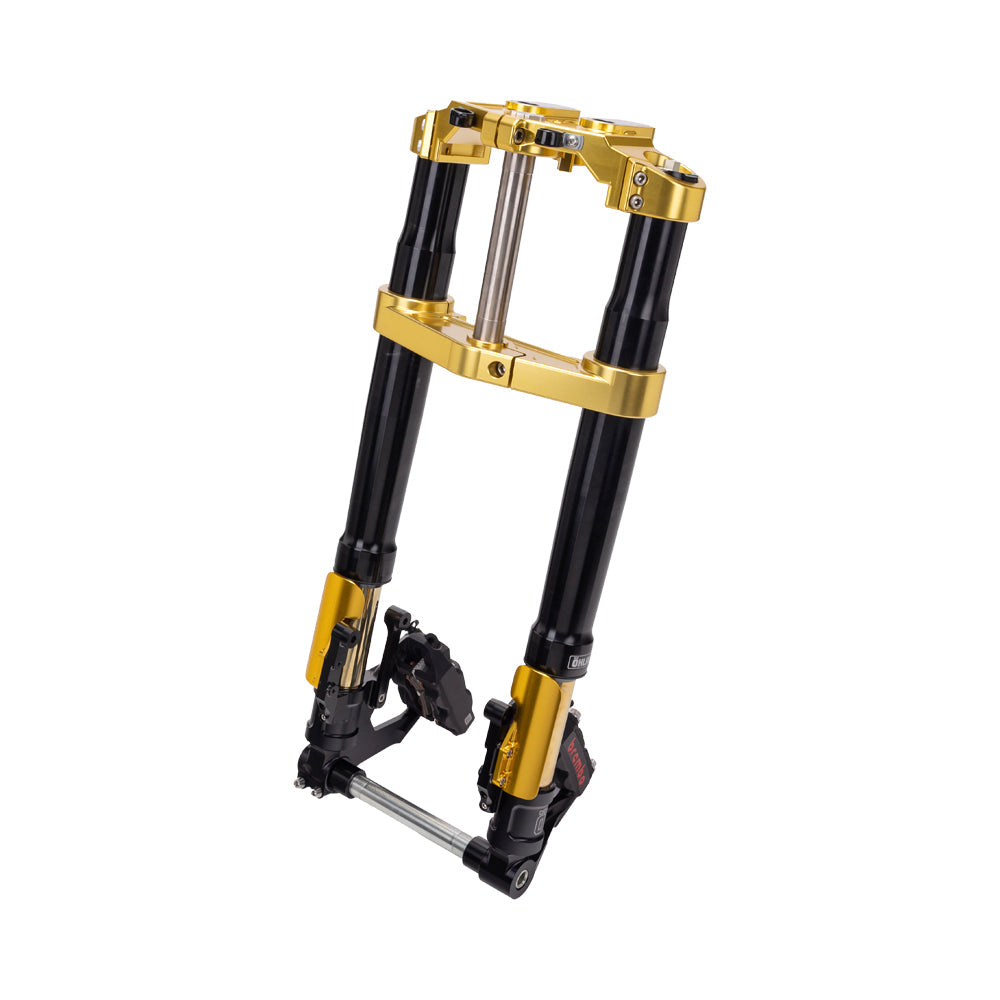

Our complete kit includes your choice of OG Touring Triple Trees, available in Stock Height or Drop 1" configurations. The Drop 1" option allows you to raise your bike’s front suspension by up to 1" for improved ground clearance and a more aggressive stance. The OG Touring Triple Trees offer three riser mounting positions — Stock, +1", and +2" pullback toward the rider (+1" adapters sold separately), allowing you to perfectly fine-tune your handlebar position for optimal comfort and control.
Finally, these kits come complete with our Touring CVO Fork Guards and your choice of Brembo 100mm calipers, renowned for their precision and consistent performance. The kit is a true bolt-on package, including the required radial spacers, and nickel-plated wheel axle and wheel spacers for both ABS and non-ABS models, ensuring a hassle-free installation. This kit is also available without calipers.
*Require 13" (330mm) Oversized Rotors, sold separately.
- 20014-2023 Touring models with Spoke-Mounted Rotors will need 2x Galfer 13" Oversized Solid Mount Wave® Rotor
- 2014-2023 Touring models with Hub Mounted Rotors will need 2x Galfer 13" Oversized Floating Wave® Rotor
**Require brake line replacement, sold separately. We recommend using our +2" OG 2024-Up Touring Lower Brakes Lines (SKU: H-BH-05-BP)
***Require 2024-Up Touring models front fender, sold separately. We recommend using our OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models
Features
-
Precision CNC-machined 6061 T6 aluminum Trees & Components

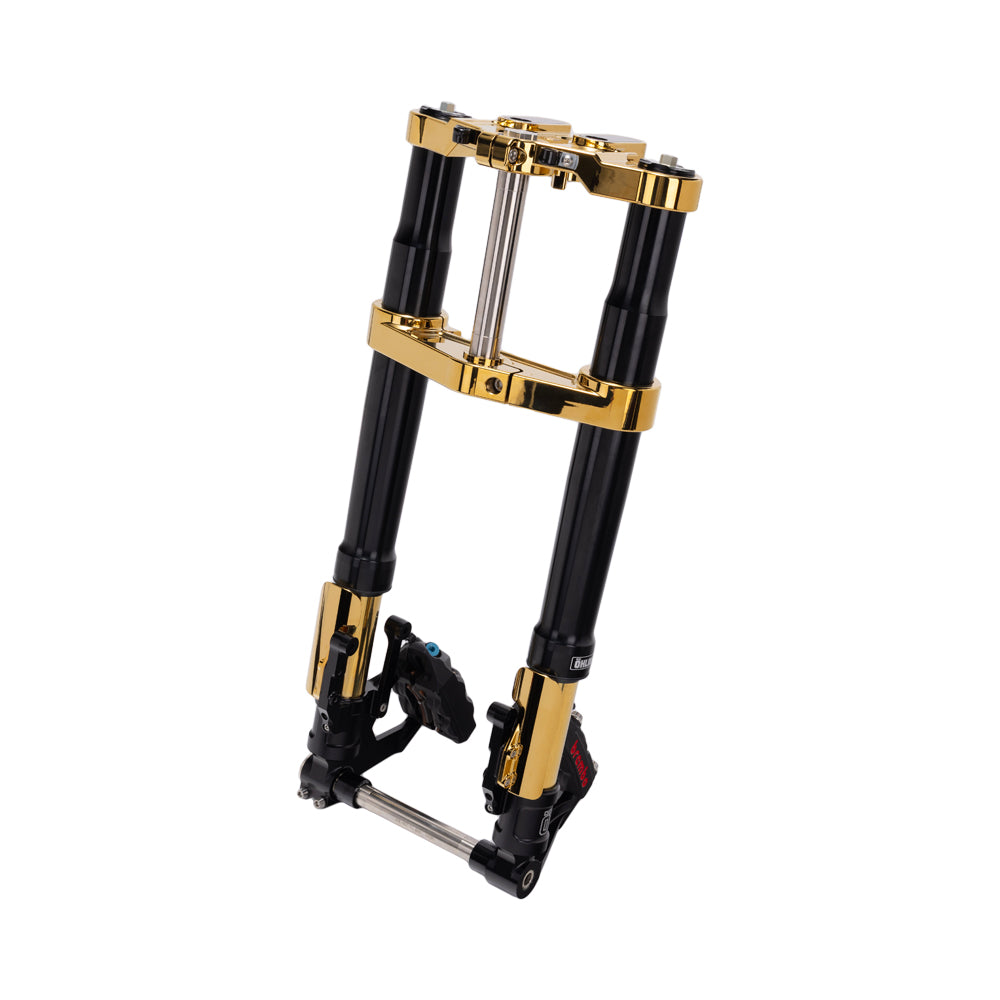

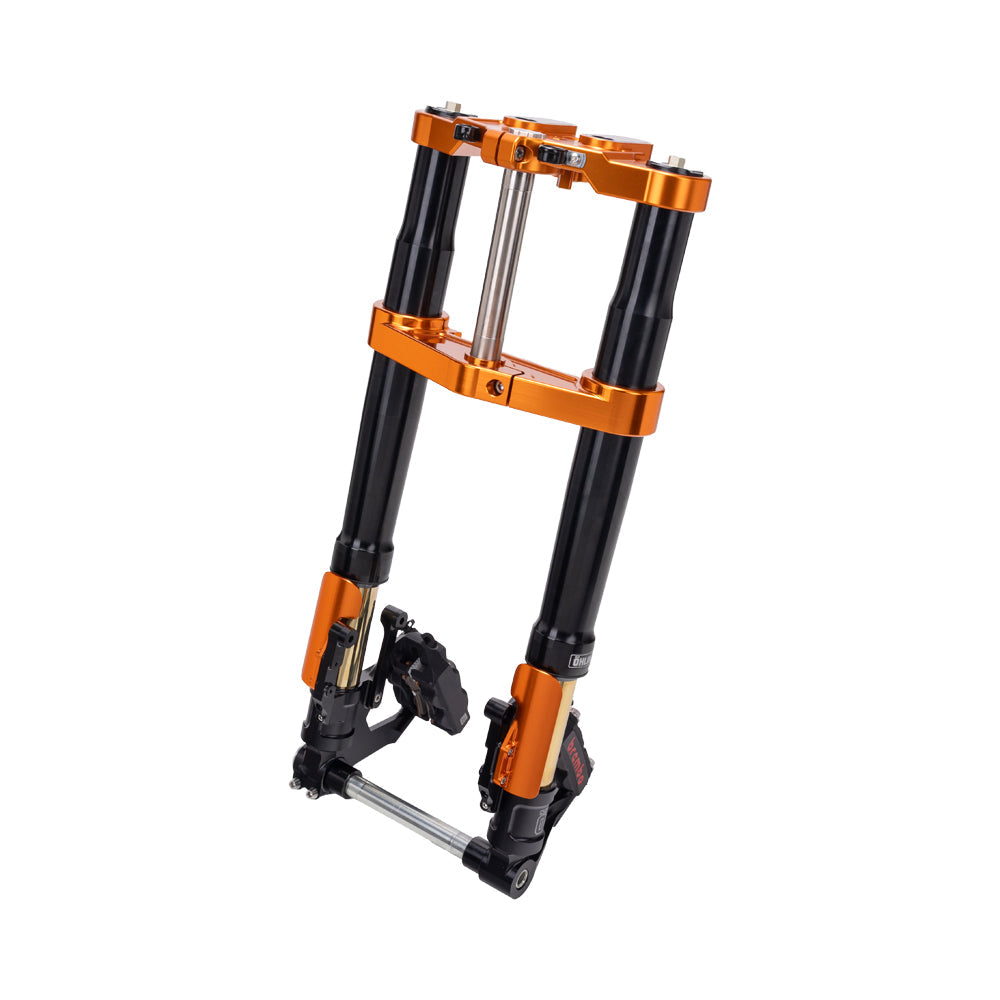

- Trees & Components available in all Anodized & Chrome finishes
- Nickel-plated chromoly axle included
- Radial spacers for 13" (330 mm) rotors included (x4)
- Front axle spacers for ABS & non-ABS models included (x2)
- Stainless steel hardware included
- Metric Banjo Bolts included (2x)
- ARP Radial Caliper hardware included
-
Require brake line replacement, sold separately. We recommend using our +2" OG 2024-Up Touring Lower Brakes Lines (SKU: H-BH-05-BP) -
Require 2024-Up Touring models front fender, sold separately. We recommend using our OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models
-
Require 13" (330mm) Oversized Rotors, sold separately.- 2014-2023 Touring models with Spoke-Mounted Rotors will need 2x Galfer 13" Oversized Solid Mount Wave® Rotor
- 2014-2023 Touring models with Hub Mounted Rotors will need 2x Galfer 13" Oversized Floating Wave® Rotor
- 2014-2023 Touring models with Spoke-Mounted Rotors will need 2x Galfer 13" Oversized Solid Mount Wave® Rotor
Included Triple Trees
- Stock Height or 1" Drop feature available
- Stem axle & nut machined from 4140 Chromoly Steel for superior strength.
-
Trees include wires & brake line(s) management clamps - Trees are supplied with a lock and key to keep the fork lock feature
- Includes our innovative reversible risers mounting block, allowing for three riser positions: stock, +1'' or +2” pullback towards the rider. +1” Adapters are sold separately
-
Trees use standard FL bushings
Included Ohlins Inverted Front Forks
- External Compression and rebound adjustment
- External preload adjustment
- 12N/mm springs rate included
- Multiple spring rates available to accommodate a wide range of rider weights
- Stroke: 117mm
- Length: 720mm
- 30mm piston diameter
Included Brembo Monobloc Calipers
- Brembo 100mm M4 Monobloc Caliper Set features 4x 34mm Pistons for optimal braking power
- Material: Cast Aluminum
- Brake Fluid: DOT4
- Calipers are ABS compatible
Fitment
- Fits 2014-2023 Road Glide models with 49mm front end
- Does not fit 2023 CVO models equipped with an inverted front-end
- Does not fit Street Glide models due to fairing mount locations
-
Require brake line replacement, sold separately. We recommend using our +2" OG 2024-Up Touring Lower Brakes Lines (SKU: H-BH-05-BP) -
Require 2024-Up Touring models front fender, sold separately. We recommend using our OG Bagger Shorty Carbon Fiber Fender Kit - 2024 to present models
-
Require 13" (330mm) Oversized Rotors, sold separately.
- 2014-2023 Touring models with Spoke-Mounted Rotors will need 2x Galfer 13" Oversized Solid Mount Wave® Rotor
- 2014-2023 Touring models with Hub Mounted Rotors will need 2x Galfer 13" Oversized Floating Wave® Rotor
- 2014-2023 Touring models with Spoke-Mounted Rotors will need 2x Galfer 13" Oversized Solid Mount Wave® Rotor
