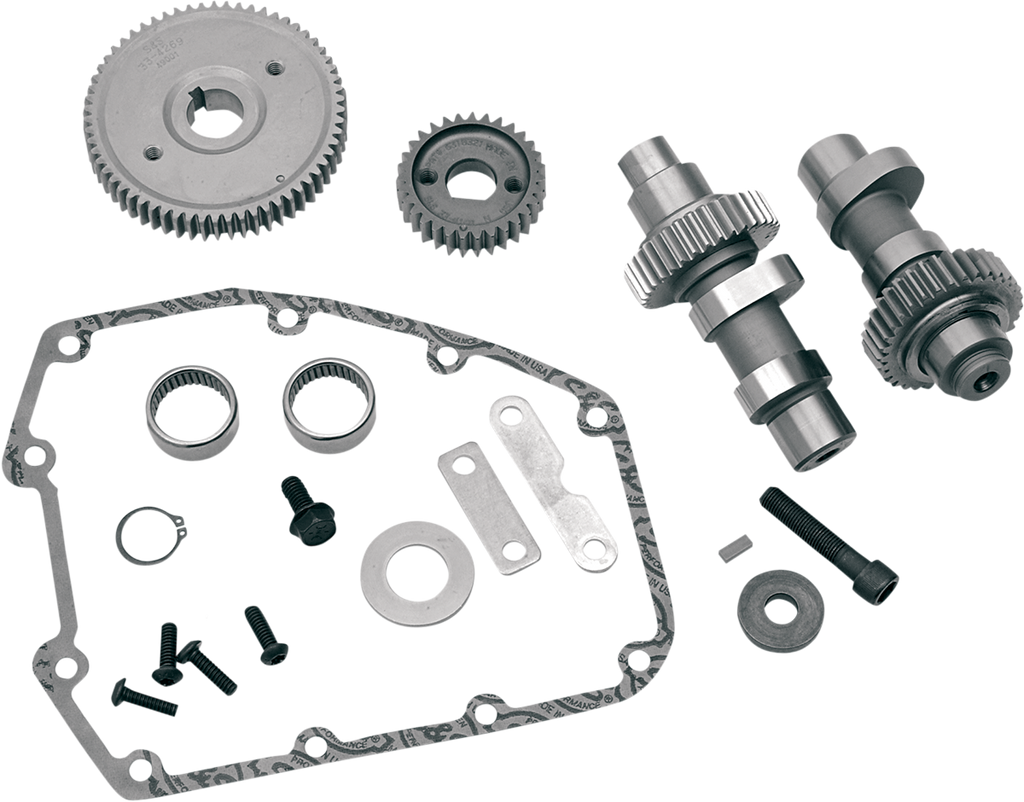

S&S Cycle 570G Gear Drive Camshaft Kit for Twin Cam Engines, 33-5267
Regular price $948.95 USD
Camshaft Kit - 570G Gear Drive - Twin Cam The S&S Cycle 570G Gear Drive Camshaft Kit is designed for Twin Cam...
Lease for as low as $/week
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
Category:
Camshaft Kit - 570G Gear Drive - Twin Cam
The S&S Cycle 570G Gear Drive Camshaft Kit is designed for Twin Cam engines ranging from 88 to 103 CID with compression ratios between 9:1 and 10:1. Built for strong performance from 3,200 to 3,700 rpm, this kit improves valve timing accuracy by replacing the stock chain drive with a gear-driven system that eliminates timing chain lash and the looseness associated with a stock chain setup.
The gear drive reverses the rear camshaft’s direction of rotation, creating additional operating clearance between the cam lobes. This design allows for higher cam lifts while supporting precise valve train operation. Due to the inherent characteristics of gear drives, some additional valve train noise may be present during operation.
This S&S Cycle camshaft kit requires professional-level installation. Material must be removed from the inner surface of the stock gear cover, and a hydraulic press and other specialized tools are required. S&S Cycle recommends using an adjustable pushrod and pushrod cover kit with the installation. Cam bearings and the gear cover gasket must be replaced when installing new camshafts. The installer must also verify coil bind, valve-to-valve clearance, and valve-to-piston clearance before the engine is operated.
The kit includes camshafts, a gear cover gasket, cam bearings, an oil passage block-off kit, retaining ring, O-ring, and inner and outer gears. Manufactured in the USA, the S&S Cycle 33-5267 camshaft kit provides a complete gear-drive upgrade for compatible Twin Cam applications and is engineered for riders and builders seeking accurate valve timing and high-lift cam performance.
Features:
- Designed for 88 to 103 CID Twin Cam engines with compression ratios from 9:1 to 10:1.
- Delivers its strongest performance from 3,200 to 3,700 rpm.
- Gear-drive design eliminates timing chain lash and loose stock chain drive engagement.
- Reverses rear camshaft rotation to provide additional clearance between cam lobes.
- Supports higher cam lifts and improved valve timing accuracy.
- Requires material removal from the inner surface of the stock gear cover.
- Professional installation with a hydraulic press and specialized tools is required.
- S&S Cycle recommends using an adjustable pushrod and pushrod cover kit.
- Cam bearings and the gear cover gasket must be replaced during installation.
- Kit includes camshafts, gear cover gasket, bearings, oil passage block-off kit, retaining ring, O-ring, and inner and outer gears.
- Installer must check coil bind, valve-to-valve clearance, and valve-to-piston clearance.
- Manufactured in the USA.
