S&S Cycle 570G Gear Drive Camshaft Kit for Twin Cam Engines, Part 33-5178
Regular price $948.95 USD
Camshaft Kit - 570G Gear Drive - Twin Cam The S&S Cycle 570G Gear Drive Camshaft Kit is designed for compatible Twin...
Lease for as low as $/week
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
Category:
Camshaft Kit - 570G Gear Drive - Twin Cam
The S&S Cycle 570G Gear Drive Camshaft Kit is designed for compatible Twin Cam engines using compression ratios from 9:1 to 10:1. This performance camshaft kit is strongest in the 3,200 to 3,700 rpm range, making it a practical choice for riders seeking improved valve timing accuracy and responsive mid-range performance. Part 33-5178 replaces the loosely fitted stock chain drive with a precision gear-drive system that eliminates timing chain lash and helps maintain accurate cam timing.
The gear-drive design reverses the rear camshaft’s direction of rotation, creating additional operating clearance between the cam lobes and allowing higher cam lifts. Installation requires material removal from the inner surface of the stock gear cover, along with a hydraulic press and other professional-level tools. S&S Cycle recommends using an adjustable pushrod and cover kit with this camshaft installation. Cam bearings and the gasket must be replaced whenever new cams are installed.

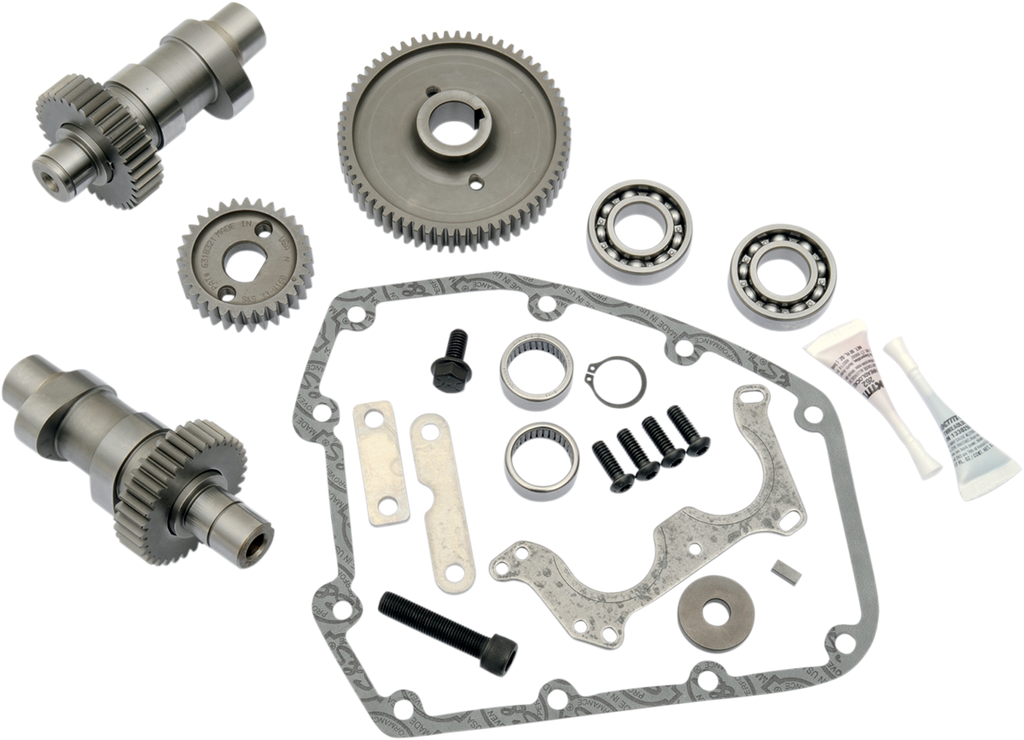

This kit includes camshafts, a gear cover gasket, cam bearings, an oil passage block-off kit, retaining ring, O-ring, and inner and outer gears. The components are made in the USA and engineered for demanding performance applications. Because gear drives naturally produce more mechanical noise than chain-drive systems, some additional valvetrain sound may be present during operation. Before completing installation, the installer must verify coil bind, valve-to-valve clearance, and valve-to-piston clearance to confirm proper compatibility and safe operating conditions.
Features:
- Engine Compatibility: Designed for compatible Twin Cam CID engine applications with compression ratios between 9:1 and 10:1.
- Performance Range: Delivers its strongest performance from 3,200 to 3,700 rpm.
- Timing Accuracy: Eliminates timing chain lash and reduces movement associated with the stock chain drive.
- Gear-Drive Design: Reverses rear camshaft rotation to provide additional clearance between cam lobes and support higher cam lifts.
- Complete Kit: Includes camshafts, gear cover gasket, bearings, oil passage block-off kit, retaining ring, O-ring, and inner and outer gears.
- Installation Requirements: Requires stock gear cover modification, a hydraulic press, and professional-level installation tools.
- Recommended Components: S&S Cycle recommends pairing the kit with an adjustable pushrod and cover kit.
- Installation Inspection: Installer must check coil bind, valve-to-valve clearance, and valve-to-piston clearance.
- Manufacturing: Made in the USA.
