S&S Cycle 585G Gear Drive Camshaft Kit for Twin Cam Engines, 33-5268
Regular price $948.95 USD
Camshaft Kit - 585G - Gear Drive -Twin Cam The S&S Cycle 585G Gear Drive Camshaft Kit is designed for Twin Cam...
Lease for as low as $/week
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
Category:
Camshaft Kit - 585G - Gear Drive -Twin Cam
The S&S Cycle 585G Gear Drive Camshaft Kit is designed for Twin Cam engines using 88, 96, 103, or 110 cubic-inch configurations and compression ratios from 10.0:1 to 10.5:1. Part number 33-5268 reverses the rear camshaft’s direction of rotation, creating additional operating clearance between the cam lobes and allowing higher cam lifts. This kit is engineered for performance-oriented applications with recommended operating ranges of 3,500 to 6,000 rpm for 88 to 103 cubic-inch engines and 2,500 to 5,500 rpm for larger engines.
The gear-drive design improves valve timing accuracy by eliminating chain lash and the looseness associated with the stock chain drive. Because gear drives have inherent operating characteristics, increased valvetrain noise may occur. Installation requires material removal from the inner surface of the stock gear cover, along with a hydraulic press and other professional-level tools. S&S Cycle recommends using adjustable pushrods and pushrod covers with this camshaft kit.
The S&S Cycle 33-5268 kit includes camshafts, inner gears, outer gears, inner bearings, outer bearings, a gasket, and installation instructions. Cam bearings and gaskets must be replaced when installing new cams. Professional installation is recommended, and the installer must verify coil bind, valve-to-valve clearance, and valve-to-piston clearance before operating the engine. Made in the USA, this complete gear-drive camshaft solution is intended for builders seeking precise valve timing and increased cam lift potential in compatible Twin Cam applications.
Features:
- Application: Designed for Twin Cam engines with 88, 96, 103, or 110 cubic-inch configurations
- Compression Ratio: Suitable for compression ratios from 10.0:1 to 10.5:1
- Cam Profile: S&S Cycle 585G camshaft design for increased cam lift potential
- Gear Drive: Reverses the rear camshaft’s rotation and provides additional clearance between cam lobes
- Valve Timing: Eliminates chain lash and loosely fitted stock chain-drive components for improved timing accuracy
- Operating Range: Recommended for 3,500 to 6,000 rpm on 88 to 103 cubic-inch engines and 2,500 to 5,500 rpm on larger engines

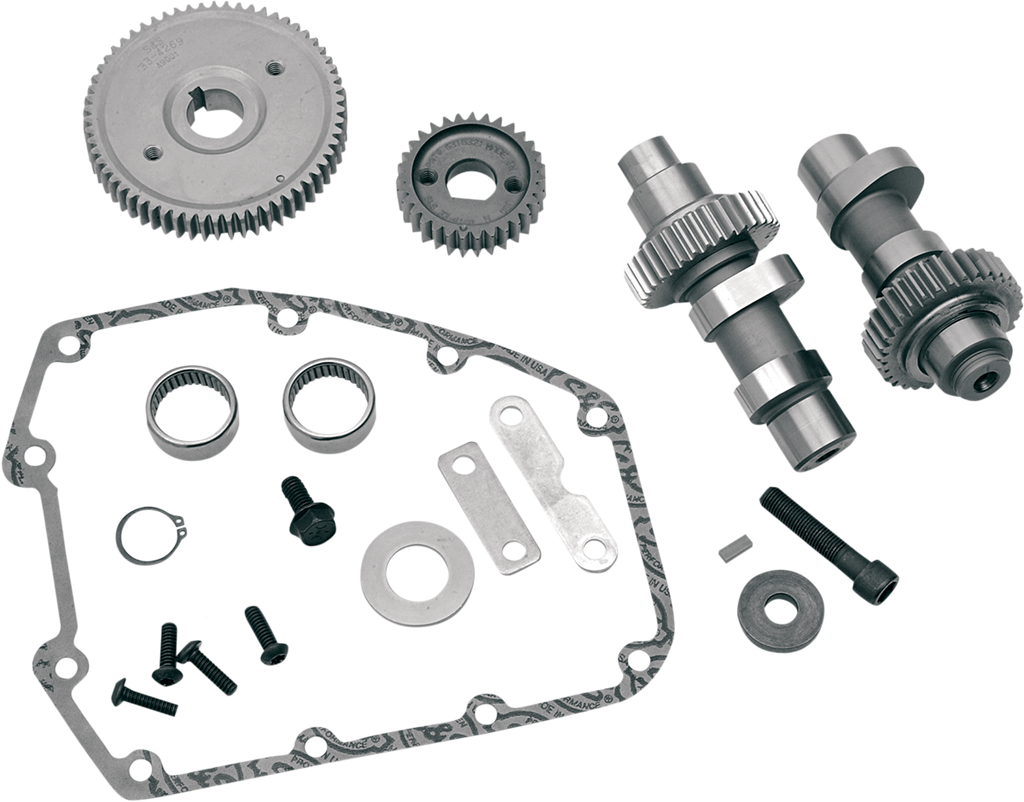

- Kit Contents: Includes camshafts, inner and outer gears, inner and outer bearings, gasket, and instructions
- Installation Requirements: Requires stock gear-cover modification, a hydraulic press, and professional-level tools
- Compatibility Recommendation: S&S Cycle recommends adjustable pushrods and pushrod covers
- Service Requirement: Cam bearings and gaskets must be replaced during camshaft installation
- Clearance Checks: Installer must verify coil bind, valve-to-valve clearance, and valve-to-piston clearance
- Origin: Made in the USA
