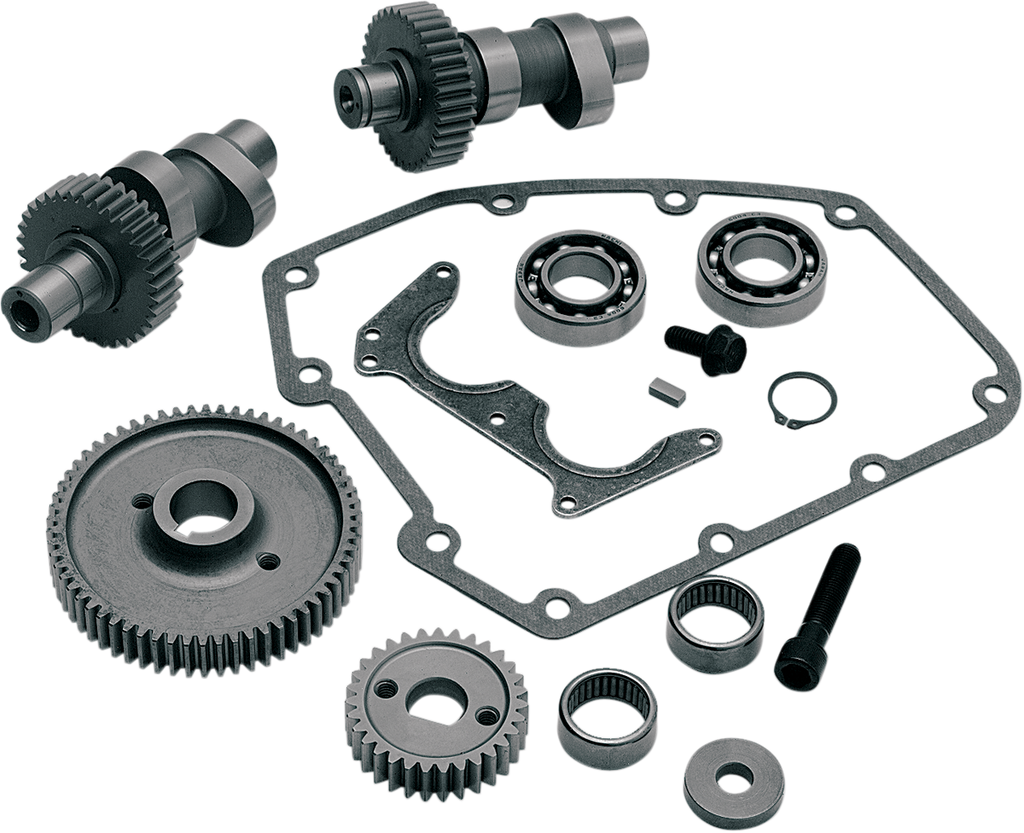

S&S Cycle 585G Gear Drive Camshaft Kit for Twin Cam Engines, Part 33-5179
Regular price $948.95 USD
Camshaft Kit - 585G - Gear Drive -Twin Cam Upgrade compatible Harley-Davidson Twin Cam applications with the S&S Cycle 585G Gear Drive...
Lease for as low as $/week
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
Category:
Camshaft Kit - 585G - Gear Drive -Twin Cam
Upgrade compatible Harley-Davidson Twin Cam applications with the S&S Cycle 585G Gear Drive Camshaft Kit, Part Number 33-5179. Designed for 88-, 96-, 103-, and 110-cubic-inch engines with compression ratios from 10.0:1 to 10.5:1, this kit reverses the rear camshaft’s direction of rotation to provide additional operating clearance between cam lobes. The increased clearance allows for higher cam lifts while supporting performance-oriented engine builds.
The gear drive system improves valve timing accuracy by eliminating the lash associated with the stock chain drive and its loosely fitted components. Recommended operating ranges are 3,500 to 6,000 rpm for 88- through 103-cubic-inch engines and 2,500 to 5,500 rpm for larger applications. Due to the inherent characteristics of gear drives, increased valvetrain noise may occur during operation. S&S Cycle recommends using adjustable pushrods and pushrod covers with this camshaft kit.
Professional-level installation is required. A hydraulic press and other specialized tools are necessary, and material must be removed from the inner surface of the stock gear cover for proper installation. Cam bearings and gaskets must be replaced when installing new camshafts. The installer must also verify coil bind, valve-to-valve clearance, and valve-to-piston clearance before operating the engine. The kit includes camshafts, inner gears, outer gears, inner and outer bearings, a gasket, and installation instructions. Made in the USA by S&S Cycle.
Features:
- Application: Designed for compatible Twin Cam engines ranging from 88 to 110 cubic inches with 10.0:1 to 10.5:1 compression ratios
- Cam Profile: 585G camshaft design intended for performance-oriented engine applications
- Gear Drive: Reverses the rear camshaft’s direction of rotation and provides additional clearance between cam lobes
- Timing Accuracy: Eliminates stock chain-drive lash and loosely fitted chain-drive components for more precise valve timing
- Operating Range: Recommended for 3,500 to 6,000 rpm on 88- through 103-cubic-inch engines and 2,500 to 5,500 rpm on larger engines
- Kit Contents: Includes camshafts, inner gears, outer gears, inner bearings, outer bearings, gasket, and installation instructions
- Installation Requirements: Requires a hydraulic press, professional-level tools, stock gear-cover modification, and replacement cam bearings and gaskets
- Clearance Checks: Installer must verify coil bind, valve-to-valve clearance, and valve-to-piston clearance
- Compatibility Recommendation: S&S Cycle recommends adjustable pushrods and pushrod covers
- Origin: Made in the USA
